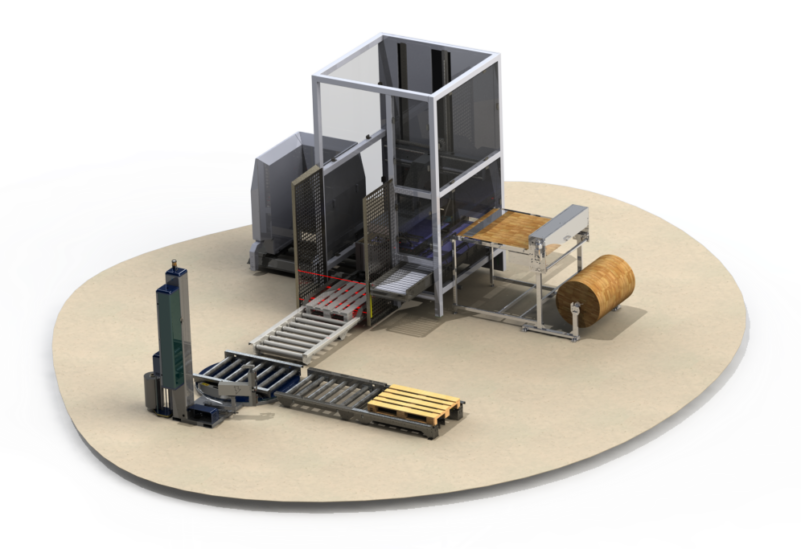

PT8 PalleTizer
Palletizer machine
-
The PT8 PalleTizer combines palletizing, antislip paper, pallet wraping and pallet transport in one single and highly productive unit. The combination of automatic height measurement and weight control, means that you can palletize different heights of cases at the same pallet, no change of program when you change your cases. The case control unit ensure that non-conforming cases or crates are removed and not palletized. Not well packed cases are rejected. The palletizer ensures maximum customer satisfaction, because your customers consistently receives well-stacked pallets. With the PT8 PalleTizer production losses are reduced, manual labor costs are also reduced, and your production capacity is increased. Equipped with castor wheels, the PT8 PalleTizer is a mobile unit and can easily be moved to a different place in the production line. Recalibration is not needed, which allows for a smooth change between product type.
Features:
-
Built to last with its stainless steel shield and axels
-
Craft for strength with powder coated aluminum chassis
-
Cuts production losses
-
Removes non-conforming weight products
-
Helps detect errors elsewhere in the production
-
Requires minimal operator attention
-
Comes with high-precision servo motors
-
Requires no re-calibration after movement
-
Switches between layer pattern in a minute
-
Calculates next motion accurately
-
Detects case format automatically
Adaptation options
-
Stand alone, often with pallet dispenser
-
Several machines can be linked as needed
-
Can be connected to several more product lines
-
Can be connected to paper cut machine for paper or card stock
Technical specifications
-
Box/Crate type: All common types
-
Pallet type: All common types
-
Power supply: 3 x 400V + N + PE. 16Amp
-
Space Needed: Only 8.6 m2
-
Hastighed: Op til 10 kasser per minut. Afhænger af vægt, mønster og kassestabilitet
Assembly modules
-
Pallet dispenser. PD20
-
Pallet conveyor. PC80 og PC80S
-
Vakuum tool
-
Bar closing for swing bar crates
-
Paper Cut
